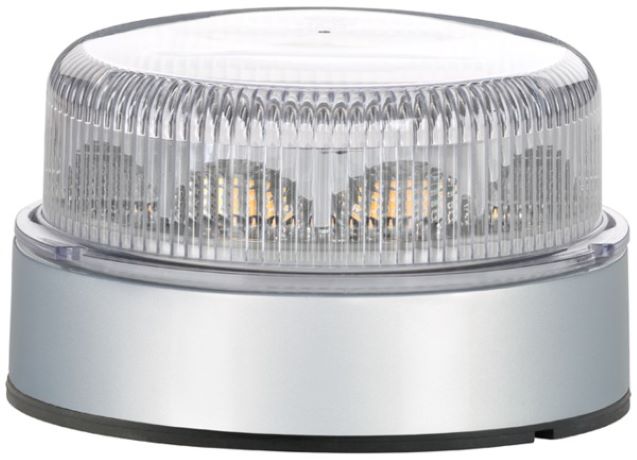

K-LED Blizzard Warning Light (3-bolt)

LED warning light with advanced electronics

This modern LED lamp combines all the advantages of diode technology with an intelligent electronic system, offering:

• Low energy consumption ,
• Durable light source ,
• Fast response time ,
• High vibration resistance .

The product is a replacement for the 2XD 010 311-001 model.

Technical specifications:

• Dimensions:
  • Height: 88 mm
  • Outer diameter: 149 mm
• Assembly: Screw connection
• Lighting type: LED
• Voltage: 12/24 V
• Current consumption: 0.7 A (12 V) / 1.3 A (24 V)
• Power consumption: 10 W
• Number of LEDs: 10
• Flash rate: 121 per minute
• Operating temperature: -40°C to +60°C
• Protection class: IP67, IPX9K
• Certificates: ADR/GGVS, ECE R10, ECE R65, SAE
• Housing color: Gray / Silver
• Housing material: Aluminum
• Lampshade material: Polycarbonate (PC)
• Light color: Yellow
• Cable length: 150 mm
• Weight: 830 g

Functionality:
The lamp features a flashing warning signal, ensuring high visibility and safety. Its transparent lens and durable construction make it ideal for use in harsh environments.

Additional features:

• Protection against incorrect polarity connection.
• Meets the requirements of ECE R10, R65 and CISPR 25 Cl5 standards.

The LED lamp is a reliable and efficient solution for applications requiring durable warning lighting.
